FULLY ENCLOSABLE TENTS

4x4 (Full Tent) 5x5 (Full Tent)
Floor dimensions 4m x 4m 5m x 5m
Height 2.8m 3.5m
Weight 75kg 115kg
Tube frame pressure 0.29 bar 0.29 bar
Inflation/deflation valves 22mm 1 1
Pressure safety valves Optional Optional
Doors 4 4
Netted Windows 8 8
Storm covers over Doors/windows Yes Yes
Packed dimension 1,3m x 0,6m x 0,6m 1,5m x 0,7m x 0,7m
Fabric
Cover and storm covers PVC coated Polyester fabric 400 gr/sqm PVC coated Polyester fabric 400 gr/sqm
Groundsheet PVC coated Polyester fabric 600 gr/sqm PVC coated Polyester fabric 600 gr/sqm
Netting over windows PVC coated Polyester netting PVC coated Polyester netting
Inflatable tubing (Inflatable boat fabric) PVC coated Polyester fabric 1000 grm/sqm PVC coated Polyester fabric 1000 grm/sqm

GAZEBO-STYLE TENTS

4x4 (Gazebo) 5x5 (Gazebo)
Floor dimensions 4m x 4m 5m x 5m
Height 2.8m 3.5m
Weight 55kg 80kg
Tube frame pressure 0.29 bar 0.29 bar
Inflation/deflation valves 22mm 1 1
Pressure safety valves Optional Optional
Packed dimension 1,3m x 0,6m x 0,6m 1,5m x 0,7m x 0,7m
Fabric
Groundsheet PVC fabric 600 gr/sqm PVC fabric 600 gr/sqm
Inflatable tubing(boat fabric) PVC fabric 1000 grm/sqm PVC fabric 1000 grm/sqm

CUSTOMISATIONS

ARK can provide custom branding and labelling
Additional securing points can be added.

4x4 5x5
Floor dimensions 4m x 4m 5m x 5m
Height 2.8m 3.5m
Weight 75kg 115kg
Tube frame 0.29 bar 0.29 bar
Inflation/deflation valves 22mm 1 1
Pressure safety valves Optional Optional
Doors 4 4
Netted Windows 8 8
Storm covers over Doors/windows Yes Yes
Packed dimension 1,3m x 0,6m x 0,6m 1,5m x 0,7m x 0,7m
Fabric
Cover and storm covers PVC coated Polyester fabric 400 gr/sqm PVC coated Polyester fabric 400 gr/sqm
Groundsheet PVC coated Polyester fabric 600 gr/sqm PVC coated Polyester fabric 600 gr/sqm
Netting over windows PVC coated Polyester netting PVC coated Polyester netting
Inflatable tubing(Inflatable boat fabric) PVC coated Polyester fabric 1000 grm/sqm PVC coated Polyester fabric 1000 grm/sqm

ARKANGEL AA 420

SERIES

AA 420 Rescue (Rapid Deployment Rescue Inflatable Raft )

APPLICATIONS

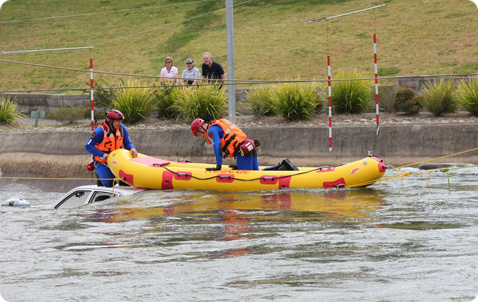

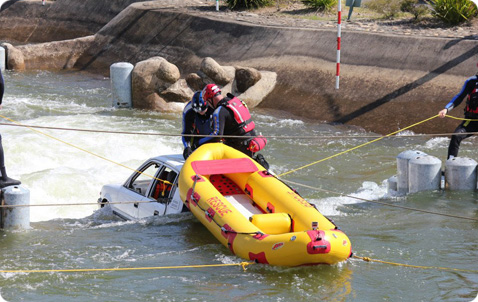

Flood rescue platform, Portable rescue boat, Rapid deployment inflatable raft

DESIGN PHILOSOPHY

Our test ground and expert advice in the construction of this inflatable rescue craft has been Queensland Australia. With the advent of almost annual urban flooding, the Queensland Fire and rescue services are worlds most well equipped urban flood rescue organization.

The cooperation of ARK with their vast inflatable boat experience with Queensland Fire & Rescue' s vast flood rescue experience has resulted in the ideal rescue boats, the Nile 365 Rescue and the Arkangel AA 420. Many designs and configurations where rigorously tested and the result is a finely tuned,versatile inflatable rescue boat.

Rescue demands many special features to deal with multiple scenarios, thus the addition of 14 well placed heavy duty multi-directional D-rings, and 10 carry handles, this rapid deployment inflatable has become standard operating equipment in many regions.

The Arkangel can be manuevered into any scenario either by paddling or by roping it in using the array of precisely place strong attachment points.

The AR 420 can be launched in a matter of minutes by a single person, a small package easily carried and stored inflates in.

When the chips are down and the waters are high many people have welcomed the sight of this bright yellow saviour emerging from the mist.

SPECIFICATIONS

STANDARD FEATURES

  • Ultra rugged construction
  • Large diameter 370 mm tubes for stability and buoyancy
  • Heavy duty 100kg Dring attachments
  • D ring Towing system
  • Grab handle boarding system
  • Dropstich inflatable floor

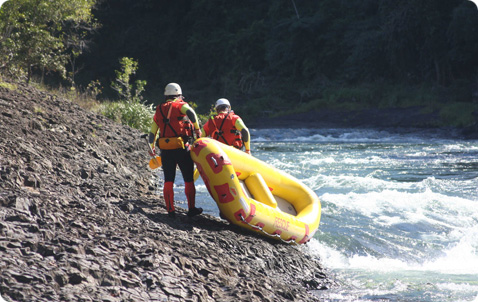

  • Can be carried like a stretcher
  • Easily and rapidly deployed
  • Operated by two personnel

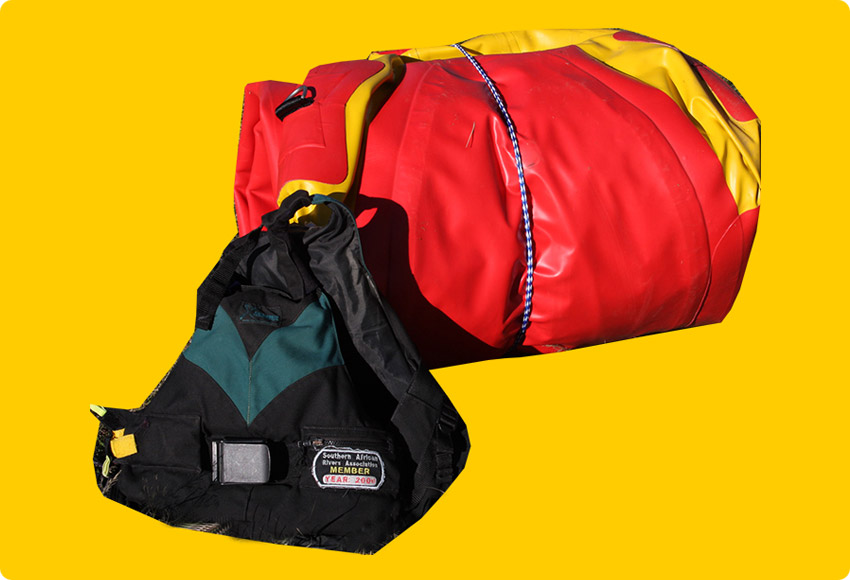

  • Collapses to 100 X 50 X45 cm
  • Weight 28kg
  • Paddle raft OR canoe style.
  • Highly maneuverable
  • Super fast Self bailing system
  • yellow and Red OR Orange Bright Rescue colours
  • RESCUE Signs

DIMENSIONS AND TECHNICAL SPECIFICATIONS

Series AA 420 Rescue
Packed Size and Weight 95 x 48 x 48cm (53kg)
Length 4.2 m
Width 1.18 m
Tube Diameter 370mm
Stern / Bow Kick 60cm /60cm
Air Chambers 4 ( main tube ) + (1 floor)
Capacity 2 – 4 persons

COLOURS

Available in any combination of the colours listed below:

Tube Trim
Red Red
Yellow Yellow
Orange Orange

CUSTOMISATIONS

  • Branding - full colour logos or standard lettering/numbering - you supply logos and artwork or let us do it for you
  • Thwart attachment: fixed, removable D-ring, or removable/adjustable slotted baton
  • Additional carry handles
  • Additional D-rings
  • Material – ARK can supply rafts in different fabric specifications for particular applications (e.g. Polyurethane, and Poly/PVC blends)
  • Colours other than those in the colour table above are possible dependent on availability

If this is the boat you're after contact us.
