FULLY ENCLOSABLE TENTS

4x4 (Full Tent) 5x5 (Full Tent)
Floor dimensions 4m x 4m 5m x 5m
Height 2.8m 3.5m
Weight 75kg 115kg
Tube frame pressure 0.29 bar 0.29 bar
Inflation/deflation valves 22mm 1 1
Pressure safety valves Optional Optional
Doors 4 4
Netted Windows 8 8
Storm covers over Doors/windows Yes Yes
Packed dimension 1,3m x 0,6m x 0,6m 1,5m x 0,7m x 0,7m
Fabric
Cover and storm covers PVC coated Polyester fabric 400 gr/sqm PVC coated Polyester fabric 400 gr/sqm
Groundsheet PVC coated Polyester fabric 600 gr/sqm PVC coated Polyester fabric 600 gr/sqm
Netting over windows PVC coated Polyester netting PVC coated Polyester netting
Inflatable tubing (Inflatable boat fabric) PVC coated Polyester fabric 1000 grm/sqm PVC coated Polyester fabric 1000 grm/sqm

GAZEBO-STYLE TENTS

4x4 (Gazebo) 5x5 (Gazebo)
Floor dimensions 4m x 4m 5m x 5m
Height 2.8m 3.5m
Weight 55kg 80kg
Tube frame pressure 0.29 bar 0.29 bar
Inflation/deflation valves 22mm 1 1
Pressure safety valves Optional Optional
Packed dimension 1,3m x 0,6m x 0,6m 1,5m x 0,7m x 0,7m
Fabric
Groundsheet PVC fabric 600 gr/sqm PVC fabric 600 gr/sqm
Inflatable tubing(boat fabric) PVC fabric 1000 grm/sqm PVC fabric 1000 grm/sqm

CUSTOMISATIONS

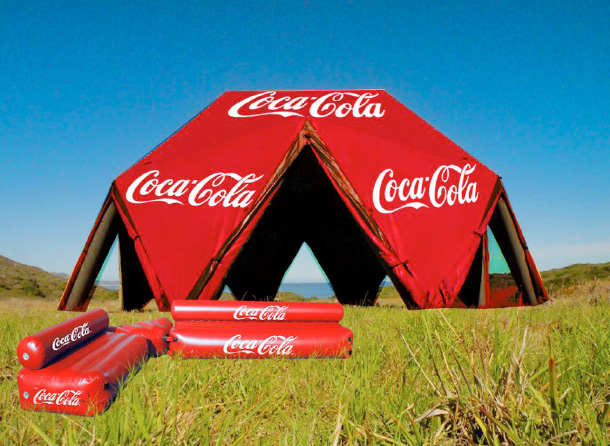

ARK can provide custom branding and labelling
Additional securing points can be added.

4x4 5x5
Floor dimensions 4m x 4m 5m x 5m
Height 2.8m 3.5m
Weight 75kg 115kg
Tube frame 0.29 bar 0.29 bar
Inflation/deflation valves 22mm 1 1
Pressure safety valves Optional Optional
Doors 4 4
Netted Windows 8 8
Storm covers over Doors/windows Yes Yes
Packed dimension 1,3m x 0,6m x 0,6m 1,5m x 0,7m x 0,7m
Fabric
Cover and storm covers PVC coated Polyester fabric 400 gr/sqm PVC coated Polyester fabric 400 gr/sqm
Groundsheet PVC coated Polyester fabric 600 gr/sqm PVC coated Polyester fabric 600 gr/sqm
Netting over windows PVC coated Polyester netting PVC coated Polyester netting
Inflatable tubing(Inflatable boat fabric) PVC coated Polyester fabric 1000 grm/sqm PVC coated Polyester fabric 1000 grm/sqm

ARK manufactures supplies and supports unique self-erecting, rapid deployment AirFrame Tents and shelters for emergency and disaster relief tents applications.

We are experts in airframe technologies, having honed our expertise in manufacturing inflatable boats, rafts and structures since 1989, and using the latest heat welding technologies.

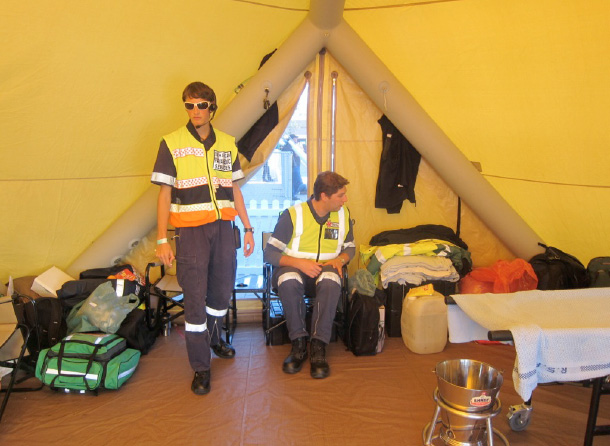

Our tents are suited for temporary or semi-permanent accommodation and shelter for emergency and disaster relief situations including storms, earthquakes, floods, war, fire and refugee camps.

Our unique product is easily transported and erected, with the single inflation point ensuring rapid self-erection within minutes. Camps of tents can be erected and also decommissioned in hours.

APPLICATIONS

  • Disaster management & rescue
  • Events

PRODUCTS

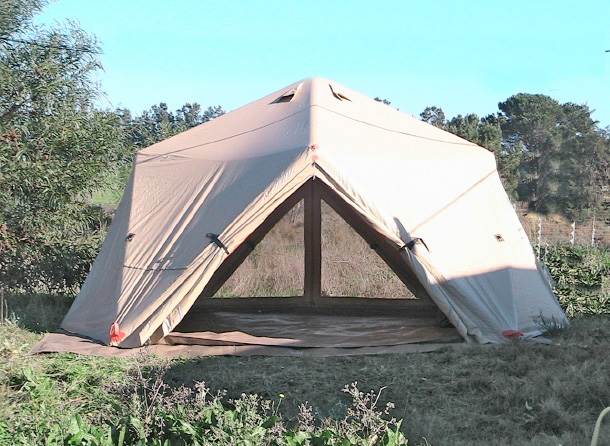

Fully enclosable tents
ARK Airframe 4x4 (AF4-F)    4m x 4m
ARK Airframe 5x5 (AF5-F)    5m x 5m

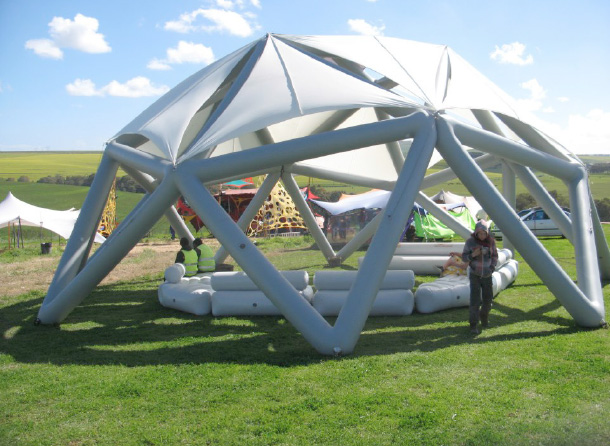

Gazebo-style tents
ARK Airframe 4x4 (AF4-G)    4m x 4m
ARK Airframe 5x5 (AF5-G)    5m x 5m

FEATURES

  • Self erecting airframe
  • Sturdy, full standing room
  • Tents can be coupled together to configure tent arrays of any size, with interleading walk-throughs
  • Built-in groundsheet
  • Single inflation point
  • Rapid erection of tent - within minutes
  • Made of marine grade PVC - UV stabilised, easy to repair
  • Stand up to elements rain and wind
  • Attachment points inside for securing items

SPECIFICATIONS

Fully enclosable tents
Gazebo-style tents

If you'd like to know more contact us.
