FULLY ENCLOSABLE TENTS

4x4 (Full Tent) 5x5 (Full Tent)
Floor dimensions 4m x 4m 5m x 5m
Height 2.8m 3.5m
Weight 75kg 115kg
Tube frame pressure 0.29 bar 0.29 bar
Inflation/deflation valves 22mm 1 1
Pressure safety valves Optional Optional
Doors 4 4
Netted Windows 8 8
Storm covers over Doors/windows Yes Yes
Packed dimension 1,3m x 0,6m x 0,6m 1,5m x 0,7m x 0,7m
Fabric
Cover and storm covers PVC coated Polyester fabric 400 gr/sqm PVC coated Polyester fabric 400 gr/sqm
Groundsheet PVC coated Polyester fabric 600 gr/sqm PVC coated Polyester fabric 600 gr/sqm
Netting over windows PVC coated Polyester netting PVC coated Polyester netting
Inflatable tubing (Inflatable boat fabric) PVC coated Polyester fabric 1000 grm/sqm PVC coated Polyester fabric 1000 grm/sqm

GAZEBO-STYLE TENTS

4x4 (Gazebo) 5x5 (Gazebo)
Floor dimensions 4m x 4m 5m x 5m
Height 2.8m 3.5m
Weight 55kg 80kg
Tube frame pressure 0.29 bar 0.29 bar
Inflation/deflation valves 22mm 1 1
Pressure safety valves Optional Optional
Packed dimension 1,3m x 0,6m x 0,6m 1,5m x 0,7m x 0,7m
Fabric
Groundsheet PVC fabric 600 gr/sqm PVC fabric 600 gr/sqm
Inflatable tubing(boat fabric) PVC fabric 1000 grm/sqm PVC fabric 1000 grm/sqm

CUSTOMISATIONS

ARK can provide custom branding and labelling
Additional securing points can be added.

4x4 5x5
Floor dimensions 4m x 4m 5m x 5m
Height 2.8m 3.5m
Weight 75kg 115kg
Tube frame 0.29 bar 0.29 bar
Inflation/deflation valves 22mm 1 1
Pressure safety valves Optional Optional
Doors 4 4
Netted Windows 8 8
Storm covers over Doors/windows Yes Yes
Packed dimension 1,3m x 0,6m x 0,6m 1,5m x 0,7m x 0,7m
Fabric
Cover and storm covers PVC coated Polyester fabric 400 gr/sqm PVC coated Polyester fabric 400 gr/sqm
Groundsheet PVC coated Polyester fabric 600 gr/sqm PVC coated Polyester fabric 600 gr/sqm
Netting over windows PVC coated Polyester netting PVC coated Polyester netting
Inflatable tubing(Inflatable boat fabric) PVC coated Polyester fabric 1000 grm/sqm PVC coated Polyester fabric 1000 grm/sqm

KAYARK KY. SERIES

SERIES

KY 300 (3.0m Whitewater inflatable kayak)
KY 380 LR (3.8m 2 person inflatable kayak)

APPLICATIONS

White water kayaking | Touring | adventure | fishing

DESIGN PHILOSOPHY

Ever wanted to go down a road but had to turn back because your equipment let you down?

Ever flown in to a remote and beautiful location and wished you had your canoe with you? This is why we put our heads together and designed the Kayarks. The result was the KY 300 and the KY 380 , single and a double version.

You can choose from the two different hull sizes, the 3 meter and the 3.8 meter versions the latter can be configured as a single or a double.

The KY 380 is fitted with Arks unique self correcting rudder , tracking and speed is phenomenal, even in moderate wind conditions. What's more, the rudder is retractable and removable for running white water.

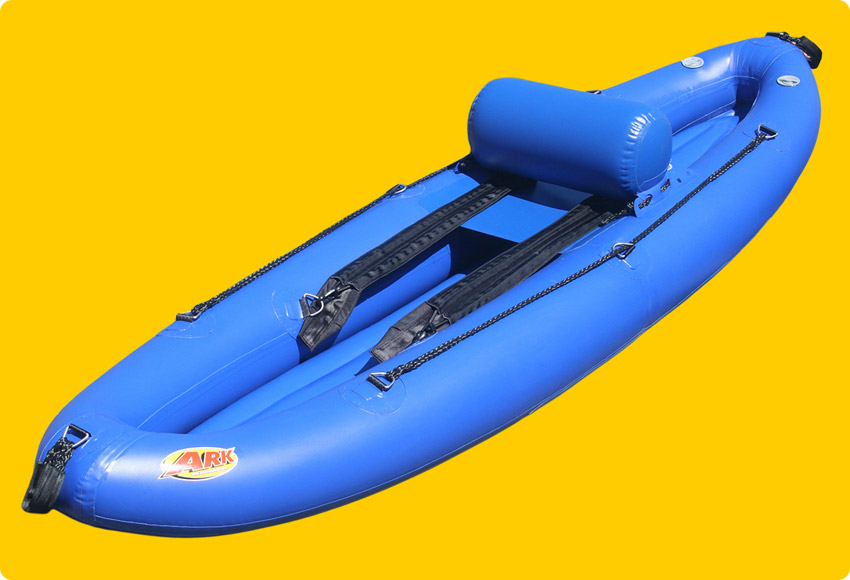

Kayark KY 300 One person Kayak

This high performance one-man inflatable Kayak is probably the hottest thing to roll off our production line. Thanks to ARK'S revolutionary V-shaped inflatable floor, it turns on a dime and cuts effortlessly through the water. The fully adjustable thigh-brace system allows the paddler to be at one with the boat and water and puts the KY300 into the class of a hard shell kayak. If you do find yourself in a tricky situation, exit from the thigh-brace is quickly accomplished in a single leg- straightening action. The combination of self bailing drain holes and high volume inflatable floor quickly dumps the water. Takes a grade of any whitewater, easily handled by a novice. Often used as support and rescue boats on rafting expeditions.

The KY300 folds into an almost unbelievable 11-kg bundle! Despite this amazing attribute, it remains more than capable of extended expedition tripping.

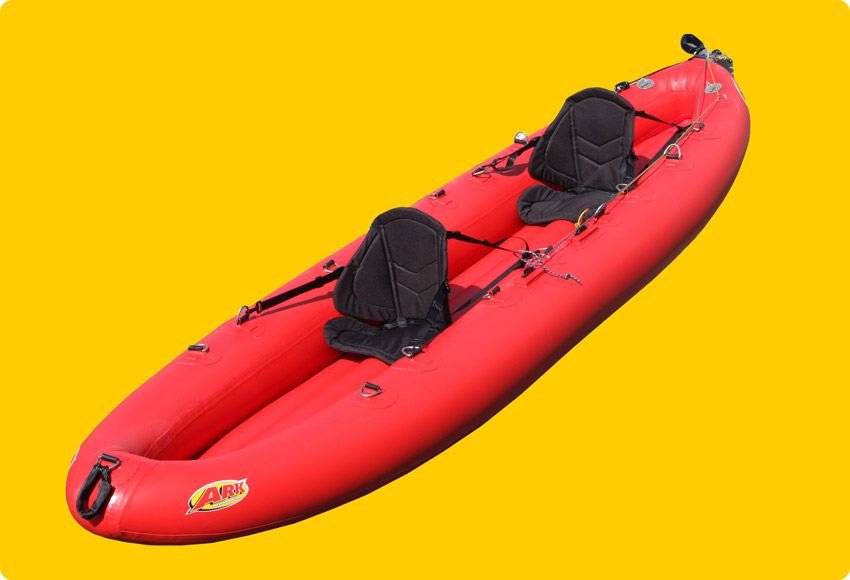

Kayark KY380

The KY380 has the same hull shape as the KY300, just stretched to accommodated a second paddler The KY380 is a longer and faster inflatable kayak – suited for long stretches. The KY3 80 LR can be rigged for one or two persons. It can easily carry enough gear for a multi day trip. The KY380 LR is the ideal fly in and paddle expedition kraft. Just check in, fly, pump up and paddle ....any island paradise yours anytime.

SPECIFICATIONS

STANDARD FEATURES

  • Revolutionary V-shaped floor
  • Adjustable foam rubber seat OR Inflatable Back rest seat
  • Quick-release thigh-brace system
  • Stainless steel D-rings for securing down rig.
  • Optional rudder or skeg
  • Grab ropes
  • Self-bailing floor for the whitewater models

DIMENSIONS AND TECHNICAL SPECIFICATIONS

Series KY300 WW and FW KY380 LR
Packed Size and Weight 45 x 30 x 30cm (10kg) 65 x 40 x 35cm (20kg)
Length 2.95m 3.80m
Width 0.90m 0.90m
Tube Diameter 280mm Tapering 280mm tapering
Air Chambers 3 3
Capacity 1 Person 1 or 2 Persons

COLOURS

Available in any combination of the colours listed below:

Tube Trim
Red -
Yellow -
Grey -
Royal Blue -

CUSTOMISATIONS

  • Branding - full colour logos or standard lettering/numbering - you supply logos and artwork or let us do it for you
  • Additional D-rings for securing equipment
  • Material – ARK can supply rafts in different fabric specifications for particular applications e.g. Polyurethane, and Poly/PVC blends)
  • Colours other than those in the colour table above are possible dependent on availability

If this is the boat you're after contact us.
